Home > Product > Power Supplies > P/N: SFX-450 BR   (Model: HPF-450BR-F08S)   - Discontinued

New 400W retail version available


80 PLUS BRONZE Certified
High Efficiency PC Power Supply



Also fits ATX or PS3 PC systems

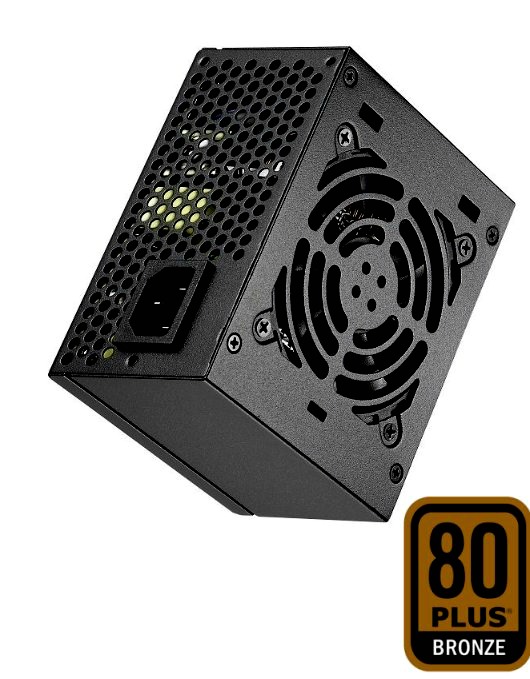

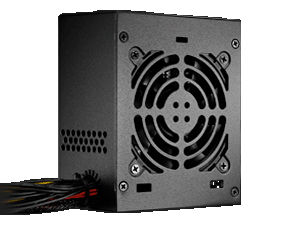

HIGH POWER® SFX-450 BR is a high efficiency 80plus Bronze certified and reliable safety certified upgrade power supply that fits and works in a wide-range of SFX form factor name brand and custom gaming PC systems.
Proven to support high efficiency low heat systems as well as the latest gaming PC systems equipped with single or dual PCI-Express video cards.   Its compact size allows more air flow inside the case and makes installation very easy.   The sophisticated on-board fan speed controller ensures your power system is sufficiently cooled while keeping the fan noise down.

    • Solid 450 Watts Performance with heavy duty single 12V Output @ 36A (432W)
    • Standard SFX Dimensions: 125 (w) x 63 (H) X 100 (L) mm.  Install in ATX or PS3 micro tower case with included mounting bracket
    • TUV, cTUVus, CB, CE, FCC Safety & EMI Approved
    • Ecova approved for minimum efficiency of 82%.  85% minimum efficiency at 50% load
    • EuP 2010 Lot 6 Compliant (System Idle power usage less than 1W)
    • Active PFC Full Range with Automatic AC input selection - no need to select 110v AC or 220v AC
    • Dual PCI-Express power connectors
    • Automatic fan speed control (AFC)
    • Built-in Triple Protection: Over-Voltage Protection, Over-Power Protection, and Short-Circuit Protection
    • Galvanized steel casing for long rust-free protection with black color coating
    • RoHS Compliant - made with hazardous-free components






EuP 2010 Lot 6
Compliant

RoHS Compliant

80Plus Bronze
Certified


450-Watt continuous


Active PFC technology
Auto AC input switching


3x Right-Angle SATA





2x PCI-E












Power Connectors Summary:

1x 20+4pin Main Connector
1x 4+4pin ATX/EPS 12V Connector
3x SATA Connectors
1x 6+2pin PCI-Express Connector
1x 6pin PCI-Express Connector
2x 4pin Molex Peripheral Connectors
1x 4pin Floppy Connector


















HIGH POWER®  Universal Fit
with Included ATX/PS3 Mounting Bracket




  Technical Specification
  • Active PFC Full Range with Automatic AC input selection - no need to select 110v AC or 220v AC
  • AC input from 100V to 240V
  • Outputs: +3.3V@21A, +5V@22A, +12V@36A, -12V@0.5A, +5VSB@3A+12V total output: 432W,  +5V/ +3.3V Combined output: 120W
  • Built-in Protection: UVP/OVP/OPP/SCP
  • Safety: FCC,CE, cTUVus, TUV,CB
  • RoHS Compliant - made with hazardous-free components
    RoHS is the Restriction Of the use of certain Hazardous Substances in electrical and electronic equipment. This has been a standard in Europe and is now becoming a standard in the world. Not only lead, but cadium, mercury, hexavalent chromium, polybrominated biphenyl (PBB), and polybrominated diphenyl ether (PBDE) flame retardants are limited as well.



    UPC Code: 4712795603071



    New 400W retail version available
