Supports all ATX 2.01, ATX12V 1.x, ATX12V 2.0, & ATX12V 2.2 systems

Home > Product > Power Supplies > Models: HPC-370-N12S  (discontinued)      430W upgrade available


NVIDIA® SLITM Ready
ATI
TM Crossfire Ready

Support Pentium D dual-core, Extreme Edition, and AMD 64 X2 Processor Based Systems

Ultra Low Noise

  • Meets Intel ATX12V 2.2  specification.  Listed as recommended power supply for Intel dealers.
  • 370 watts with dual +12v rails and dual-core CPU support
  • 252 watts on 12V outputs alone.
  • Flexible connector design supporting both ATX and BTX systems.
  • A.F.C. (Automatic Fan Speed Control with built-in temperature sensor).
  • All new complete 6*Startm system protection with built-in:
    • Over Voltage Protection
    • Under Voltage Protection
    • Over Current Protection
    • Over Temperature Protection
    • Short Circuit Protection
    • Over Power Protection
  • Dual S-ATA power connectors
  • Patented EZ-Extract (squeeze-and-pull) Peripheral Power Connectors

  For Dual-core CPU and SLI/Crossfire


Standard ATX dimensions: 150(W) x 86(H) x 140(D) mm
Honey-comb rear vent structure for improved ventilation.



Intel tested and determined that this power supply meets MINIMUM electrical, mechanical fit and functional compatibility with Intel® boxed desktop boards and Intel® boxed Pentium® D or Pentium® 4 processors or Intel® Core 2 Duo Processor.


World Power Supply with full safety approval from FCC, UL, cUL, CE, TUV, and CB.


  Ultra Low Noise
Efficient design generates less heat than previous generation of power supply.  The over-sized low-noise 12cm fan thus can operate at its lowest noise operating range of under 2000 RPM:



Output Power Distribution Table:





Connector Summary


Connector Name Quantity Picture
24pin ATX connector

(For upgrading legacy 20-pin power supply ATX-300-12E,  please also order 24-to-20pin adapter)

21.5 inch (533mm)

1
click to enlarge


EZ-Extract (squeeze-and-pull) Peripheral Power Connector

28 inch (711 mm)
21.5 inch (546 mm)
21.5 inch (546 mm)
16 inch (406 mm)
16 inch (406 mm)

5
click to enlarge
Connector Name Quantity Picture

Floppy Drive Power Connector

34 inch (863 mm)

1


Serial ATA Power Connector


29 inch (736mm)
23 inch (584 mm)
2


4-pin ATX12V Power Connector

20.5 inch (520 mm)

1

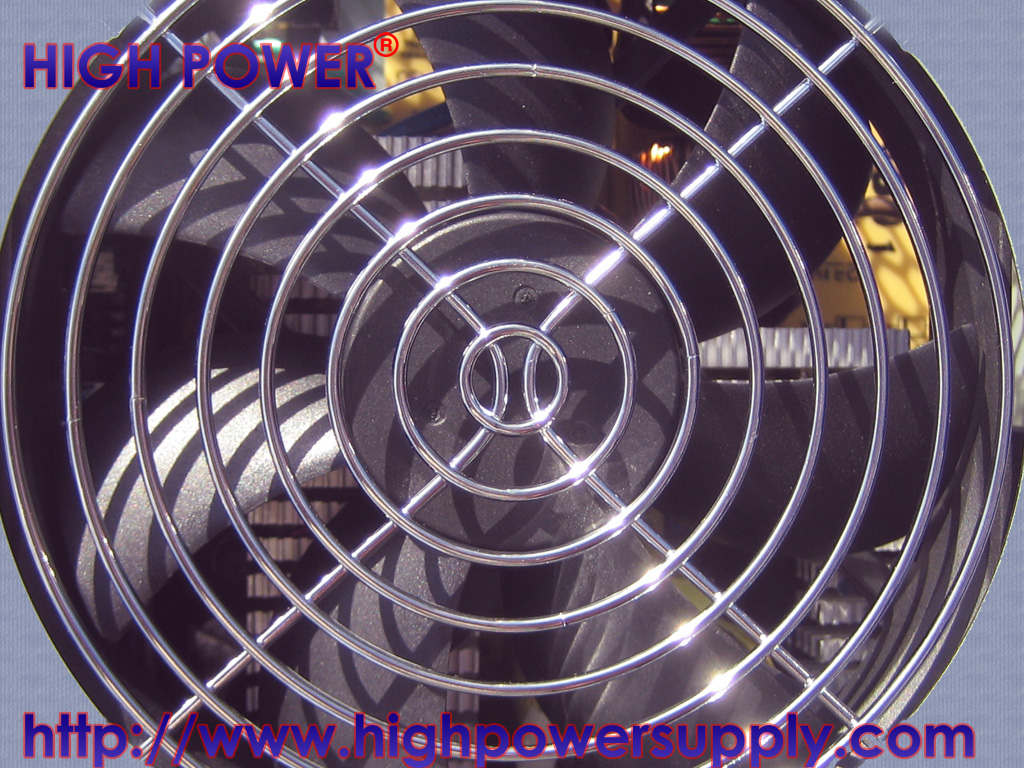

Close-Up Pictures


click on picture to enlarge


click on picture to enlarge



click on picture to enlarge



click on picture to enlarge




Reseller Flyer Download:


click to enlarge picture


Performance upgrade power supply for:
Dell Dimension 3100 - E310 and E310/3100
Dell Dimension 5100 - E510 and  Dell Dimension 5150-E510






Model Relationship: 430W upgrade version available
HPC-370-P12S is the PFC version for this model
