Supports all ATX 2.01 & ATX 2.03 systems

Home > Product > Power Supplies > HPC-250-101

250 Watts output.
Recommended for Athlon/Thunderbird/Duron.
Automatic fan speed control (AFC).
Built-in Triple Protection.


Specification | Connectors Summary | Close-up Pictures | Cable's Length


Specification



  • 250 Watts continous load
works with AthlonTM/Thunderbird systems.
Recommended for DuronTM systems.
Works with any Pentium III processor based system.
Works with any Celeron processor based system.
  • Automatic fan speed control (AFC) with built-in temperature sensor.

    The power supply fan speed is regulated in reference to its internal temperature sensor. The low friction fan turns slowly in low temperature, reducing power consumption and greatly reducing fan noise. Conversely, the fan is allowed to spin up its speed in response to temperature increase. The fan speed ranges roughly from 1200 RPM to 3000 RPM.

    The AFC feature, in general, extends fan life, cuts down energy consumption, and reduce the chance of over-heating. AFC is one step above the basic low friction "Noise Killer" fan deployment.


Output
Voltage
Load Range
MAX
Regulation Ripple
Peak-to-Peak
Max.
1. +5V 25.0A +5% ~ -5% 50 mV
2. +12V 10.0A +5% ~ -5% 120 mV
3. -5V 0.5A +10% ~ -10% 50 mV
4. -12V 0.5A +10% ~ -10% 120 mV
5. +5Vs 1.0A +5% ~ -5% 50 mV
6. +3.3V 14.0A +5% ~ -5% 50 mV
*+5V +3.3V combined output should not exceed 125W

MTBF Life Expectancy of this model:
100,000 hours* (11 years & 2 months)

Operating temperature range:
10oC - 50oC (50oF - 122oF)

High standard of quality with FCC, UL, CSA, CE, TUV, SEMKO, NEMKO, FIMKO, DEMKO, and CB certification.




Connectors Summary


Connector NameQuantityPicture
20-pin Standard ATX connector1
Peripheral Power Connector4
Connector NameQuantityPicture
Floppy Drive Power Connector2

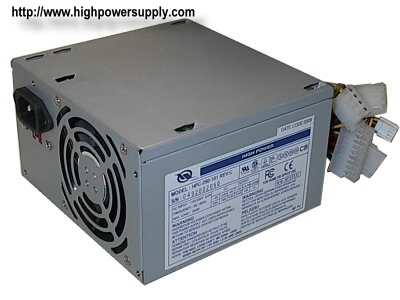

Close-up Pictures

click to enlarge


click to enlarge



1. Heat from system.
2. Heat absorb by power supply.
3. Air flow also reduce the heat generated by power supply.
4. Fan sucks the hot air from power supply.
5. Fan blows out the heat.


Cable's Length

1X 20-pin Standard ATX connector to fit any ATX mainboard.
2X Peripheral Power Connector.
1X Floppy Drive Power Connector.
2X Peripheral Power Connector.
1X Floppy Drive Power Connector.




Refurbished Unit Available
