Supports all ATX 2.01 , ATX 2.03 & 12V systems

Home > Product > Power Supplies > HPC-250-102 12V  (Discontinued)

250 Watts output.
I/O Switch for manual shut-down.
Intel Pentium 4 Ready.
Recommended for Athlon/Thunderbird/Duron.
Automatic fan speed control (AFC).
Built-in Triple Protection.


360W Dual-Fan Upgrade Model Available


Specification | Connectors Summary | Close-up Pictures | Cable's Length


Specification



  • 250 Watts continous load
Intel Pentium 4 Ready.
Works with any Pentium III processor based system.
Works with any Celeron processor based system.
Recommended for AthlonTM XP systems.
Recommended for AthlonTM/Thunderbird systems.
Recommended for DuronTM systems.


Output
Voltage
Load Range
MAX
Regulation Ripple
Peak-to-Peak
Max.
1. +5V 25.0A +5% ~ -5% 50 mV
2. +12V 13.0A +5% ~ -5% 120 mV
3. -5V 0.3A +10% ~ -10% 50 mV
4. -12V 0.8A +10% ~ -10% 120 mV
5. +5VSB 2.0A +5% ~ -5% 50 mV
6. +3.3V 20.0A +5% ~ -5% 50 mV
*+5V +3.3V combined output should not exceed 165W

MTBF Life Expectancy of this model:
100,000 hours* (11 years & 2 months)

Operating temperature range:
10oC - 50oC (50oF - 122oF)

High standard of quality with FCC, UL, CSA, CE, TUV, SEMKO, NEMKO, FIMKO, DEMKO, and CB certification.




Connectors Summary


Connector NameQuantityPicture
20-pin Standard ATX connector1
Peripheral Power Connector5
Floppy Drive Power Connector2
Connector NameQuantityPicture
4-pin ATX12V Power Connector1
6-pin Aux Power Connector1


Close-up Pictures

click to enlarge


click to enlarge



1. Heat from system.
2. Heat absorb by power supply.
3. Air flow also reduce the heat generated by power supply.
4. Fan sucks the hot air from power supply.
5. Fan blows out the heat.


Cable's Length

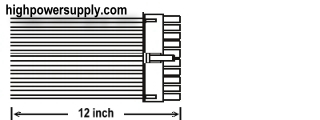

1X 20-pin Standard ATX connector to fit any ATX mainboard.

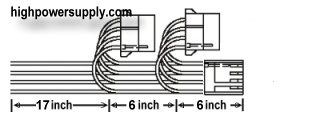

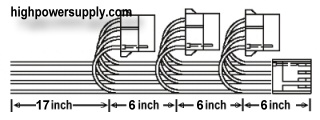

3X Peripheral Power Connector.
1X Floppy Drive Power Connector.
2X Peripheral Power Connector.
1X Floppy Drive Power Connector.

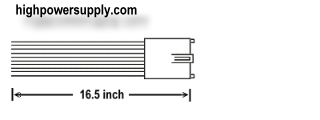

1X 6-pin Aux Power Connector.

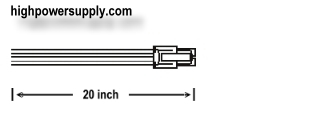

1X 4-pin ATX12V Power Connector.



Compatible with Compaq 153652-002


360W Dual-Fan Upgrade Model Available
