Supports all ATX 2.01, ATX 2.03 & Intel P4 (12V) Active PFC systems

Home > Product > Power Supplies > HPC-360-302 DF (Active PFC)  - Discontinued

430-Watt 120mm Fan Upgrade Available


360 Watts output (Active PFC).
Passed Intel Pentium 4 power supply testing.
Automatic Voltage switch from 100V to 240V.
I/O Switch for manual shut-down.
Dual High quality ball bearing Fans design. (function of 2nd fan)
Automatic Fan Speed Control (A.F.C.).
Extra long cables to support server (full) tower cases.
Fan Speed Monitor connector (3-pin).
SATA Hard Drives support.
Built-in Quad Protection.






Specification | Connectors Summary | Close-up Pictures | Cable's Length| Function of 2nd Fan


Specification



Intel Pentium 4 Ready.
Works with any Pentium III processor based system.
Works with any Celeron processor based system.
Recommended for AthlonTM XP systems.
Recommended for AthlonTM/Thunderbird systems.
Recommended for DuronTM systems.




Output
Voltage
Load Range
MAX
Regulation Ripple
Peak-to-Peak
Max.
1. +5V 35.0A +5% ~ -5% 50 mV
2. +12V 17.0A +5% ~ -5% 120 mV
3. -5V 0.8A +10% ~ -10% 100 mV
4. -12V 0.3A +10% ~ -10% 120 mV
5. +5VSB 2.0A +5% ~ -5% 50 mV
6. +3.3V 28.0A +5% ~ -5% 50 mV
*+5V +3.3V combined output should not exceed 220W

MTBF Life Expectancy of this model:
100,000 hours* (11 years & 2 months)

Operating temperature range:
10oC - 50oC (50oF - 122oF)

High standard of quality with FCC, UL, CSA, CE, TUV, SEMKO, NEMKO, FIMKO, DEMKO, and CB certification.







Connectors Summary



Connector Name Quantity Picture
20-pin Standard ATX connector 1
Peripheral Power Connector 6
4-pin ATX12V Power Connector 1
Connector Name Quantity Picture
Floppy Drive Power Connector 2
6-pin Aux Power Connector 1
3-pin Fan Speed Monitor 1

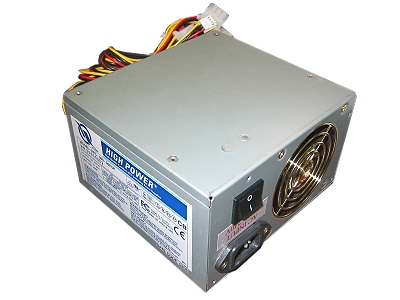

Close-up Pictures

click to enlarge


click to enlarge




The function of 2nd Fan


The 2nd fan of Power Supply will absorb the heat generated by CPU more efficiently.

The 2nd fan also serves as a backup in case of the primary fan failure.

Heat absorb by power supply and Fan blows out the heat.






Cable's Length

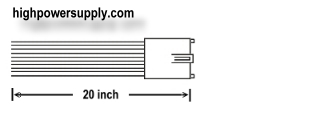

1X 20-pin Standard ATX connector to fit any ATX mainboard.

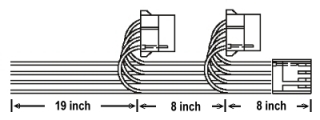

2X Peripheral Power Connector.
2X Peripheral Power Connector.
1X Floppy Drive Power Connector.
2X Peripheral Power Connector.
1X Floppy Drive Power Connector.
1X 6-pin Aux Power Connector.
1X 4-pin ATX12V Power Connector.
1X 3-pin Fan Speed Monitor.






Model Relationship: HPC-430-N12S APFC is the 430-Watt 120mm fan active PFC upgrade model
